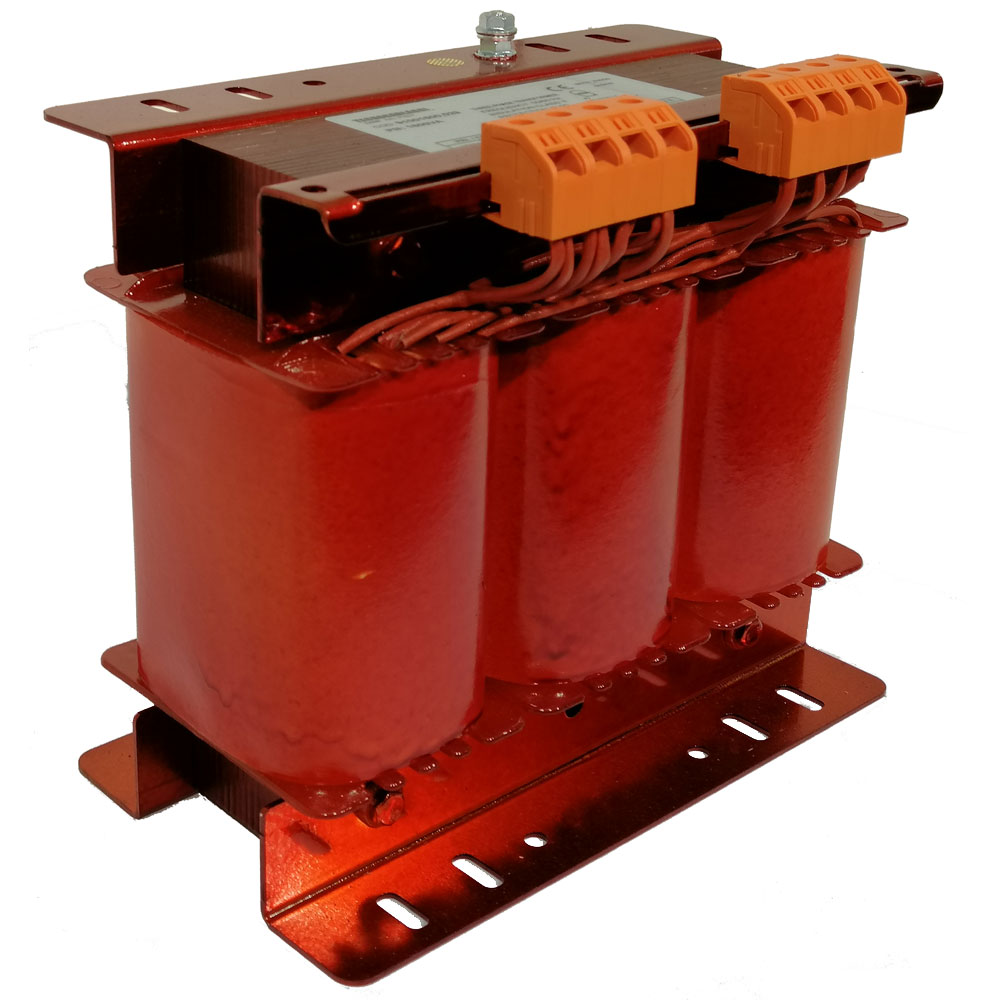

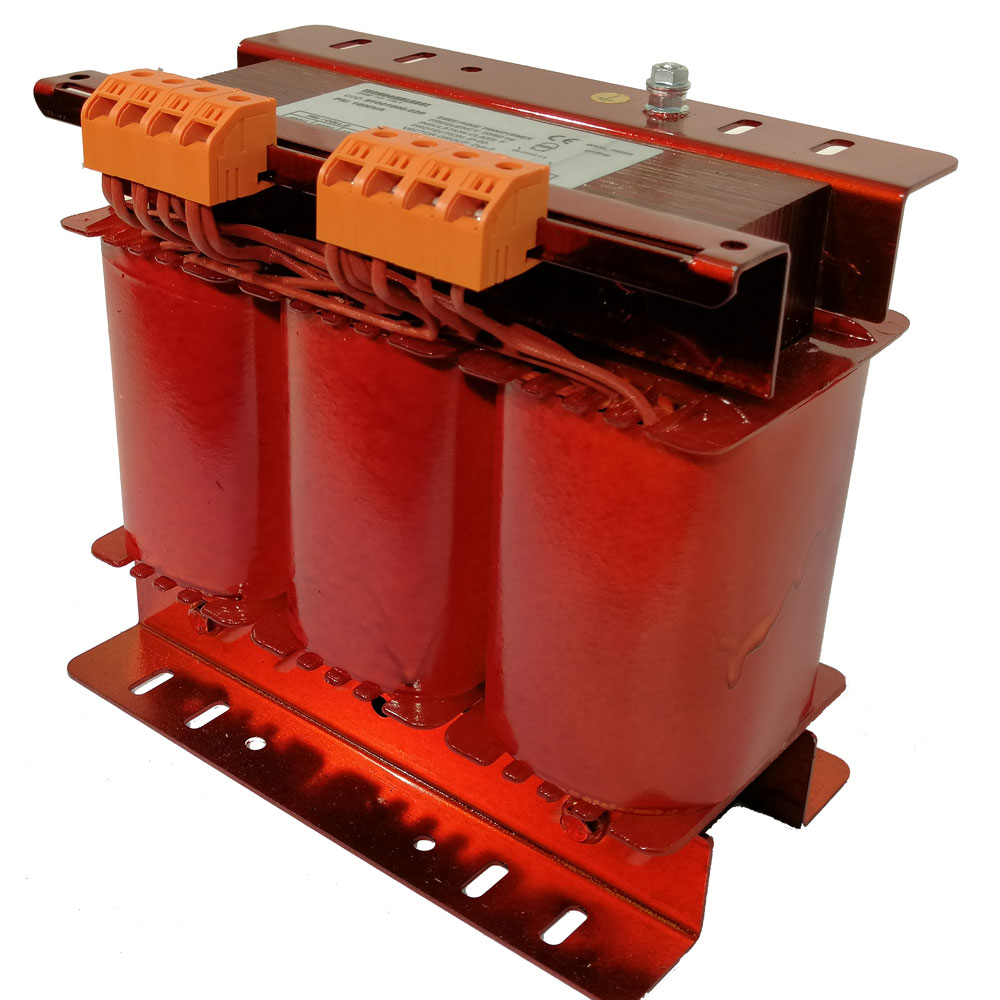

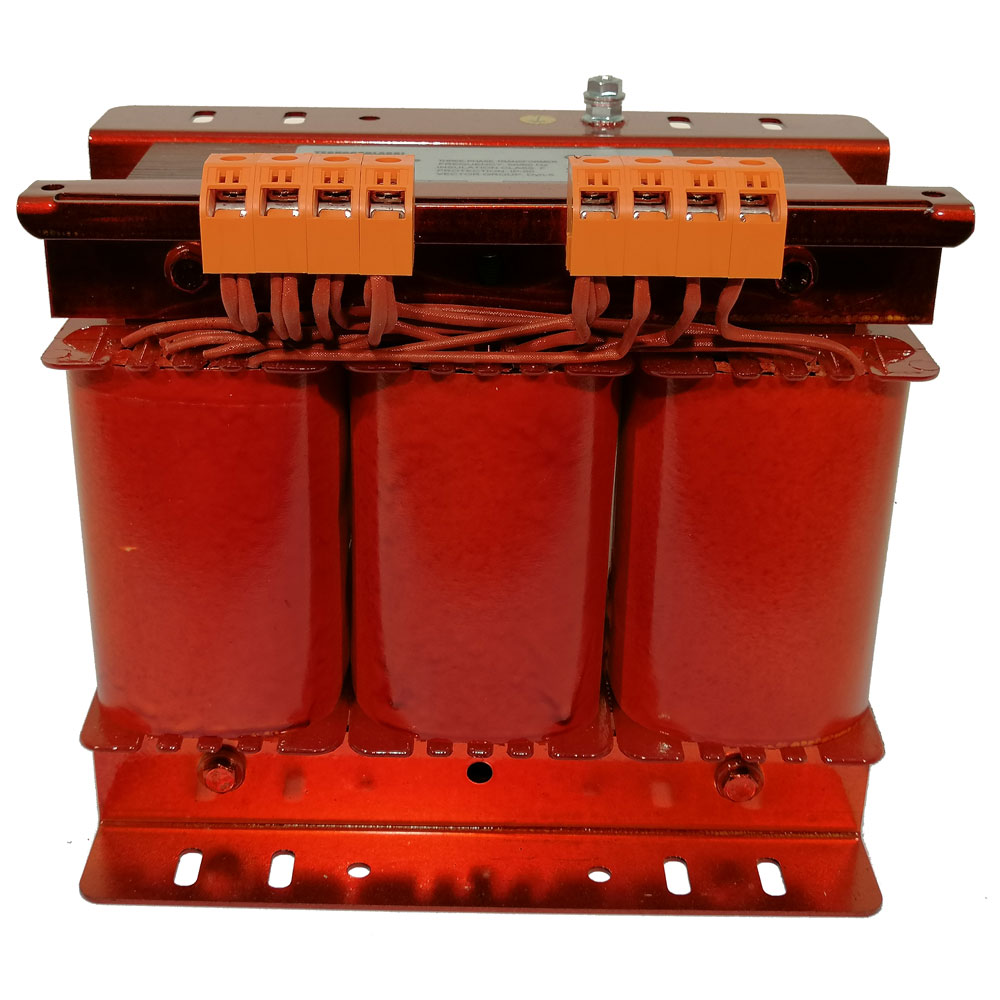

Transformers CE Three-phase

Three phase transformers for general purposes. Made with low losses magnetic metal sheet, windings executed with double varnished class H materials. Impregnation is made with polyester resin, oven cemented, which grants a great sturdiness and prevents from deterioration due to atmospheric agents. These products are ideal also for tropical envinronments.
All kind of connections available upon request.

  • Technical documents

  • Technical features

  • Applied norms up to 40KVA:EN 61558-2-4/2-6
  • Applied norms over 40KVA:CEI 14-8 IEC 762
  • Windings: Class H
  • Terminal blocks: IP 20 up to 60A
  • Thermic Class: Class F
  • Insulation voltage: 4000 V between windings - 2000 V between windings and earthing
  • Protection classe: Class 1
  • Varnish: Tropicalized
  • Frequency: 50/60 Hz
  • Service: Continuous
